Brad Nailer vs Finish Nailer: What is a Brad Nailer Used For? Uses Compared

On this page9 sections

If you are looking to buy a second fix nail gun, then this article comparing a brad nailer vs finish nailer is an essential read. We provide definitions for each as well as a comprehensive features table comparing a brad nailer vs finish nailer.

Of course, if you buy a new nailer, you will also need collated nails. So, also read our detailed sections comparing brad nails vs finish nails. Read on to learn more.

Definitions

Understanding the primary difference between these two second-fix nail guns keeps your on-site work completely pristine. Both use smaller nails, but with key differences:

Brad nailer

A brad nailer fires fine 18-gauge nails that leave a tiny hole in lightweight timber profiles. This gun is the better choice for detailed trim work like narrow scotia beads and delicate mouldings. It reduces the risk of splitting thin wood; pneumatic models still require an air compressor line, while cordless models offer another option for site work. Sometimes called a “micro pinner” these are also available as 21G mini brad nailers, which, as the name suggests, drive even smaller 21G mini brad nails.

Finish nailer

A rugged 16-gauge finish nailer drives thicker finish nails into timber for second-fix finishing work. It provides more holding power than fine brads for heavier interior trim such as skirting boards and architraves. The larger wire diameter helps secure wider baseboards to suitable timber backing; match the fastener to the material and fixing specification.

For a catalogue example of this finish-nailer type, the Bostitch FN1664-E uses 16G straight finish nails from 25–64mm and is listed for second-fix joinery, furniture and exhibition work.

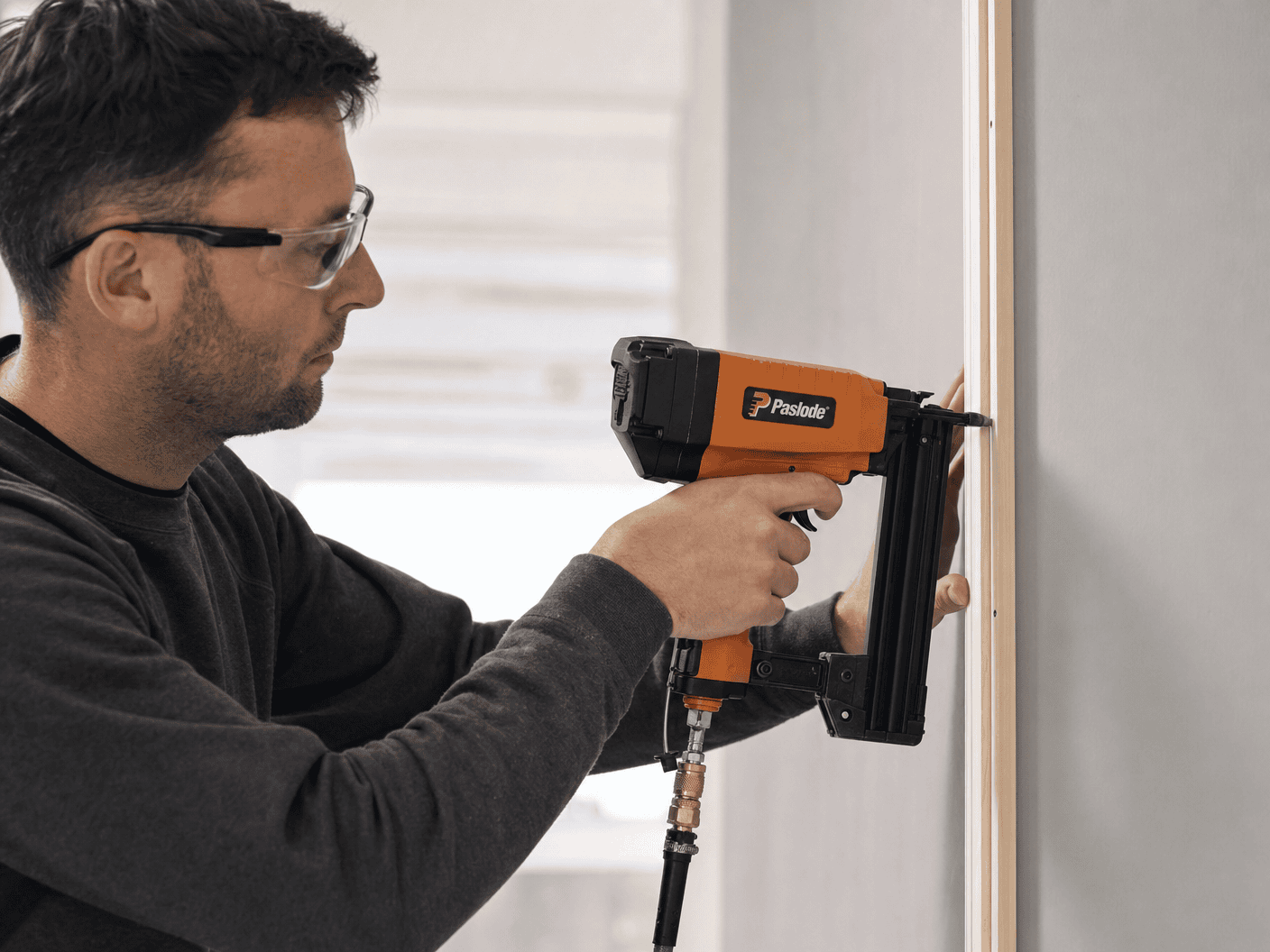

Brad Nailer Trim Application
Brad Nailer Trim Application

What is a brad nailer used for? – 10 typical applications

Brad nailers have lower holding power than finish nailers. Here are ten common applications:

  1. Architraves – fastening decorative timber architrave surrounds cleanly around internal door frames with excellent accuracy and speed
  2. Cabinet assembly – securing thin plywood backing sheets neatly to solid timber kitchen carcass units before final screw installation
  3. Decorative trims – attaching delicate pine or oak decorative mouldings where fine, low-impact fastening is required on site
  4. Door casings – pinning lightweight internal door stop beads securely into seasoned timber casing frames without any splitting
  5. Furniture making – assembling intricate timber framework, rear backing boards, and decorative trim pieces on bespoke high-end household furniture
  6. MDF panelling – securing modern shaker-style MDF panelling strips flat against level internal walls before the final painting stage
  7. Picture frames – securing fragile mitred timber corners tightly together while your main wood adhesive cures inside the workshop
  8. Skirting boards – tacking slim softwood skirting boards flush against flat internal wall surfaces before completing the final decorative finishes
  9. Wall panelling – installing tongue and groove timber boards smoothly to internal wall battening systems with neat, hidden fasteners
  10. Window trims – securing slim timber finishing profiles neatly around the internal edges of domestic window frame linings

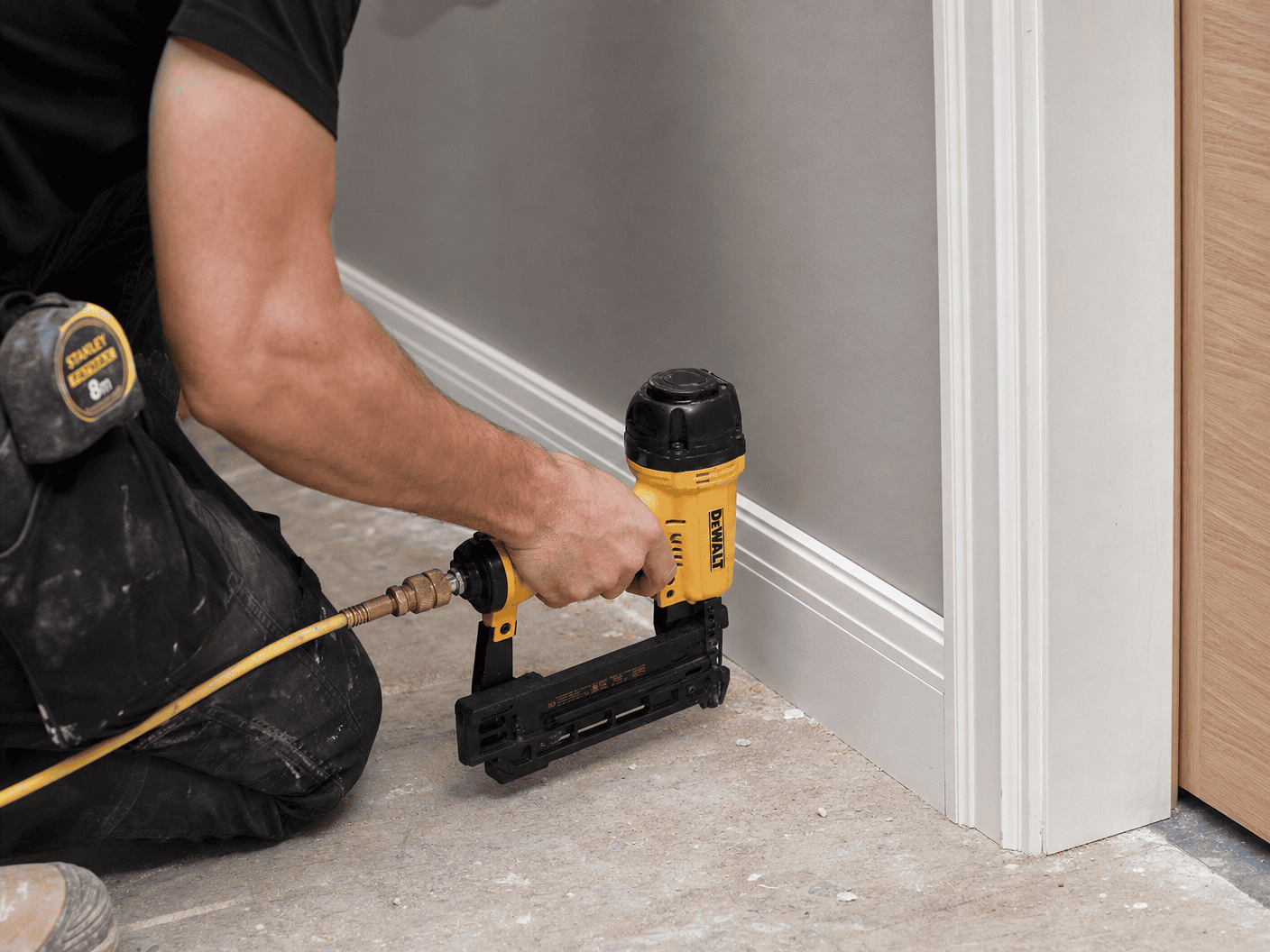

Finish nailer skirting board application
Finish nailer skirting board application

What is a finish nailer used for? – 10 typical applications

Finish nailers are typically larger, heavier, and more expensive than brad nailers. They are both second-fix tools, so they commonly share applications such as skirting boards, architraves and door casings (mentioned above).

Listed below are 10 typical applications suited to finish nailers, where greater holding power is needed. These are finishing applications, not approval for structural connections; check the installation specification.

  1. Baseboards – installing baseboards securely through heavy plasterboard directly into solid timber wall studs with a suitable nail length
  2. Built-in furniture – fixing decorative trim and finishing panels to built-in furniture; use specified fixings for frames and shelf supports
  3. Chair rails – fixing heavy decorative timber waist rails horizontally across internal room walls into structural timber studwork
  4. Crown moulding – securing large, heavy decorative ceiling mouldings firmly into solid timber ceiling joists and wall plate timbers
  5. Door frames – fixing decorative casing and trim around door frames; use the specified fixings for the frame itself
  6. Hardwood trims – driving dense, thick-gauge fasteners cleanly into tough oak, ash, or beech decorative timber sections
  7. Stair components – fixing decorative stair trim; use the specified structural fixings for treads, risers and balustrades
  8. Timber cladding – securing heavy external or internal shiplap timber boards firmly to treated structural exterior wall batten frames
  9. Window boards – fixing internal window-board trim to suitable timber backing; follow the installation specification
  10. Wood panelling – mounting heavy, solid wood decorative panelling sheets securely to internal structural timber framework, wall battening systems

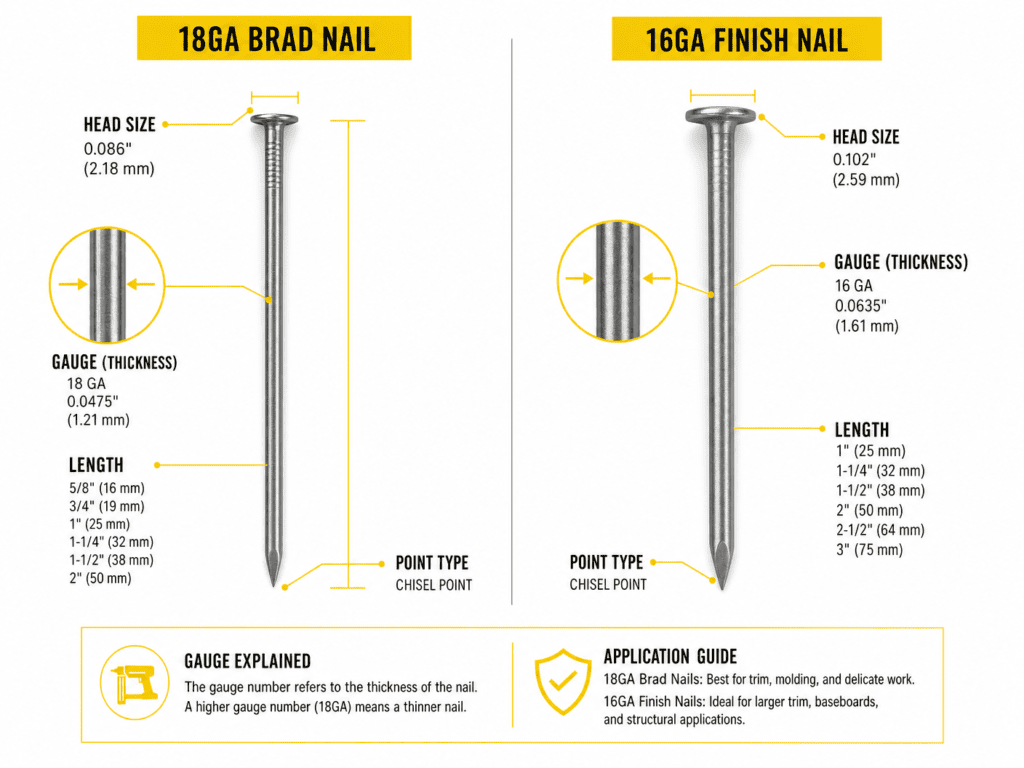

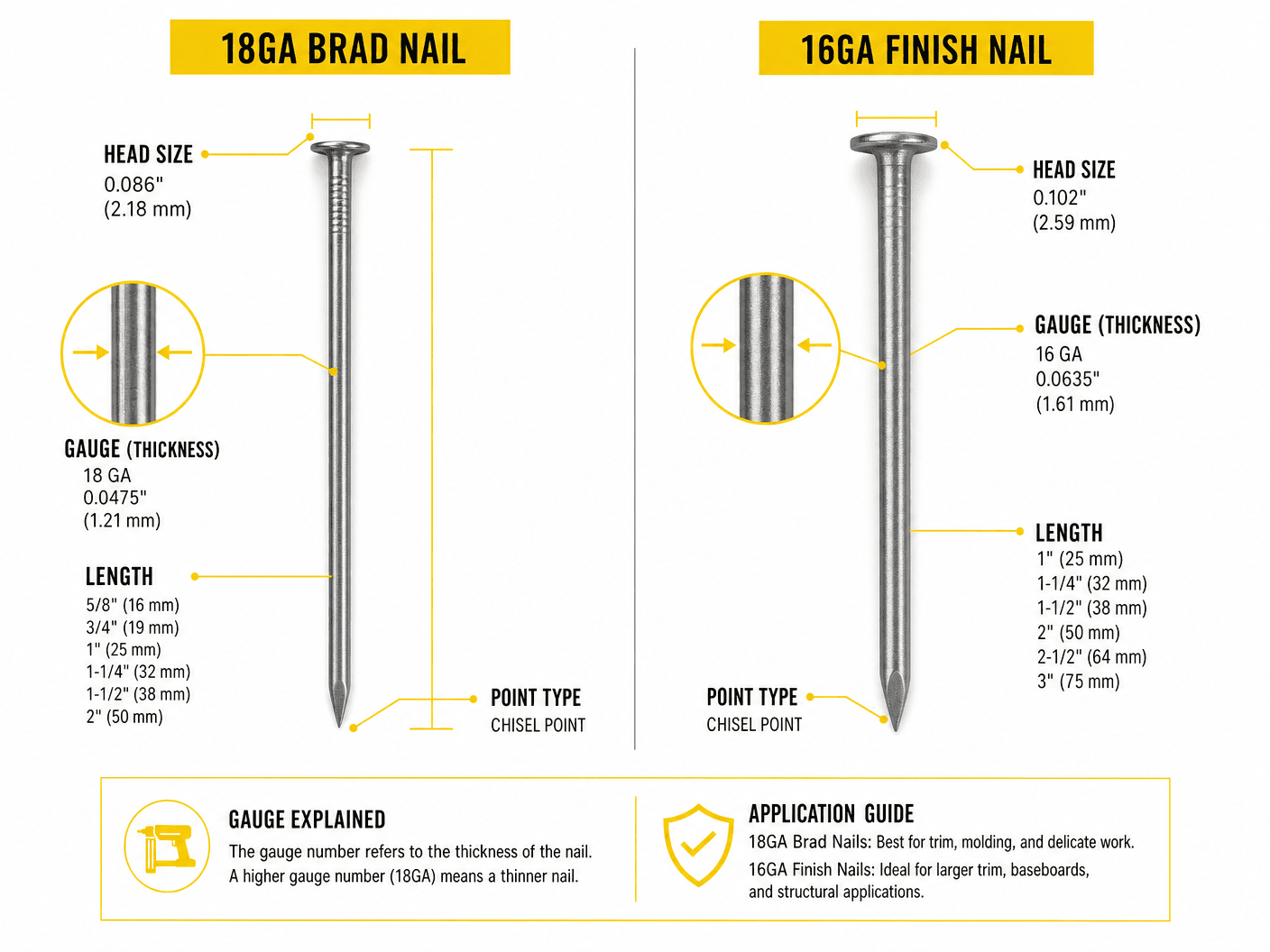

Brad vs Finish Nails Diagram
Brad vs Finish Nails Diagram

Exploring brad nails vs finish nails table

  • Naturally, each nailer type has unique nails. So, view a comparison of brad nails vs
  • finish nails below:
#FeatureBrad NailsFinish Nails
1Fastener length rangeTypically, 15mm to 50mm longTypically, 25mm to 64mm long
2Gauge thicknessThin 18-gauge wireThicker 15 or 16-gauge
3Head profileSmall rectangular headDistinct round or T-shaped head
4Holding strengthLow structural gripHigh mechanical holding power
5Hole size leftTiny discrete entry holeLarger holes requiring wood filler
6Main usageFine decorative trim mouldingInstalling baseboards and casings
7Primary nailerLightweight pneumatic brad nailerCompatible 15G or 16G finish nailer; power source varies by model
8Timber splitting riskExtremely low risk profileHigher risk in thin timbers

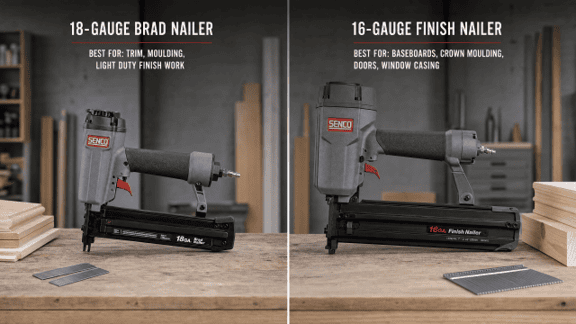

Brad and Finish Nailers Side by Side
Brad and Finish Nailers Side by Side

Brad nailer vs finish nailer functionality table

Choosing the right tool depends entirely on your specific second-fix site task.

#FeatureBrad NailerFinish Nailer
1Clearance space utilitySlim nose clears narrow profile obstructionsAngled body improves tight corner access
2Drive depth controlDial regulates driver pin depth smoothlyPrecise mechanical depth adjustment thumbwheel system
3Equipment financial purchaseLower initial price point before buyingHigher initial financial investment required
4Gauge size profileFires slim 18-gauge wire fastenersFires thicker 15G or 16G finish nails, depending on the model
5Main trade job typeIdeal for delicate finish carpentry trimFor heavier second-fix trim, subject to the fixing specification
6Misfire prevention designContact trip safety mechanism at tipDual-action contact trip safety shoe
7Primary power optionLightweight pneumatic lines or compact batteryPneumatic or cordless, depending on the model
8Structural hold levelLow holding power for a great nailerSuperior mechanical wood pulling power
9Structural joint techniqueWorks best alongside high-quality wood glueFixing suitability depends on the material, fastener and installation specification
10Timber fracture riskExtremely safe for brittle wood profilesHigher risk on delicate timber pieces
11Timber surface impactLeaves minimal markings needing cosmetic fillingLeaves larger holes requiring professional filler
12Magazine loading formatUses straight collated wire stick stripsAngled or horizontal strip track options

We hope the above table adds clarity when you are comparing buying a brad nailer vs finish nailer. For finer decorative fixings, see our pin nailer vs brad nailer comparison.

In summary

We started our guide by defining both brad nailers and finish nailers, which is important to understand when comparing the differences. The next part is understanding application differences, which, to summarise, include:

  1. Brad nailer applications – these include architraves, cabinet assembly, decorative trims, and picture frames
  2. Finish nailer applications – these include baseboards, crown moulding, stair components, and window boards

In terms of fastener Length and Gauge, brad nails typically measure 15mm to 50mm long using thin 18-gauge wire, whereas finish nails range from 25mm to 64mm long using thicker 15- or 16-gauge wire. Brad nails feature a very small rectangular head, leaving a tiny entry hole, while finish nails have distinct round or T-shaped heads leaving larger holes that require wood filler.

Brad nails carry an extremely low risk profile for splitting brittle wood, whereas finish nails have a higher risk of fracturing thin or delicate timber pieces. Brad nailers generally have a lower initial price point and work best with wood glue, while finish nailers require a higher initial financial investment and offer superior mechanical wood-pulling power for finishing work where the fixing specification allows.
